Barrel lifter for steel and plastic barrels STANDARD
Product information "Barrel lifter for steel and plastic barrels STANDARD"
The barrel lifter for steel and plastic barrels STANDARD from Staplerlift is the perfect attachment for your forklift to safety and quickly transport a drum (with L-ring, with tension ring lid, as a beading drum, or as a rectangular drum) to its place of use or storage during operation. The clamping grippers (hot-dip galvanized) integrated into the robust steel structure imress with a high clamping force and keep the barrels securely in place. To stabilize the barrels, rubber buffers are attached to the holder to prevent dangerous slipping. A safety chain protects the barrel lifter from unwanted slipping off the fork by connecting the chain to the fork carrier. For the safe and efficient handling of steel or plastic drums, this robust drum lifter provides you with a practical addition to your stacker.
Product highlights:
- Maximum load capacity of 800 kg
- Pracitcal stacker attachment with robust drive-in pockets for transporting barrels
- Reliable means of transport: steel and plastic drums with a capacity of 120 l to 220 l - in the versions with L-ring, with tension ring lid, bead drums, and rectangular drums
- High-quality, galvanized clamp grippers with high clamping force, easy-to-maintain screw connection for quick replacement
- Rubber buffers on the two barrel receptacles
- Robust welded steel structure
- Color: pure orange
Alternatively, this barrel lifter is available on request in the following color variants:
- anthracite grey
- gentian blue
- hot-dip galvanized
Optionally available
- powder coated in RAL special color
- painted in RAL special color
- completely hot-dip galvanized version
- EX-protection version according to ATEX 95

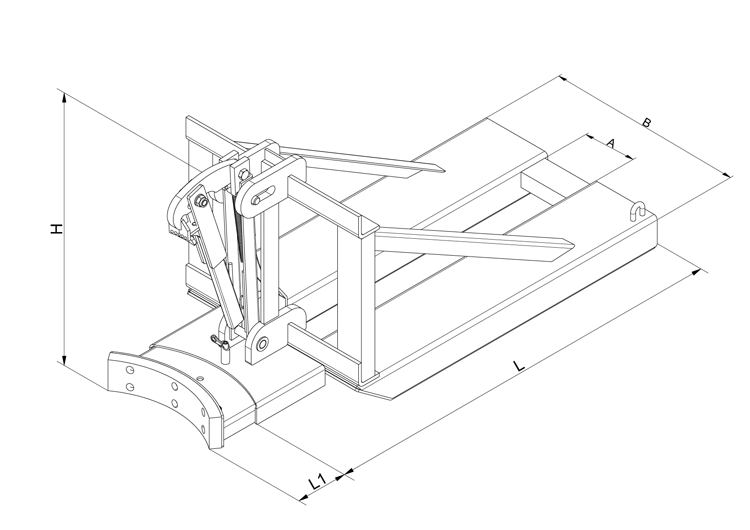

| Gabelzinkenquerschnitt : | 200 mm x 80 mm |
|---|---|
| Height: | 700 mm |
| Length: | 1240 mm |
| Load Capacity: | 800 kg |
| Net Weight, kg: | 135 kg |
| Verstellbereich Gummipuffer: | 65 mm - 150 mm |
| Width: | 590 mm |
| Zinkenabstand: | 160 mm |
