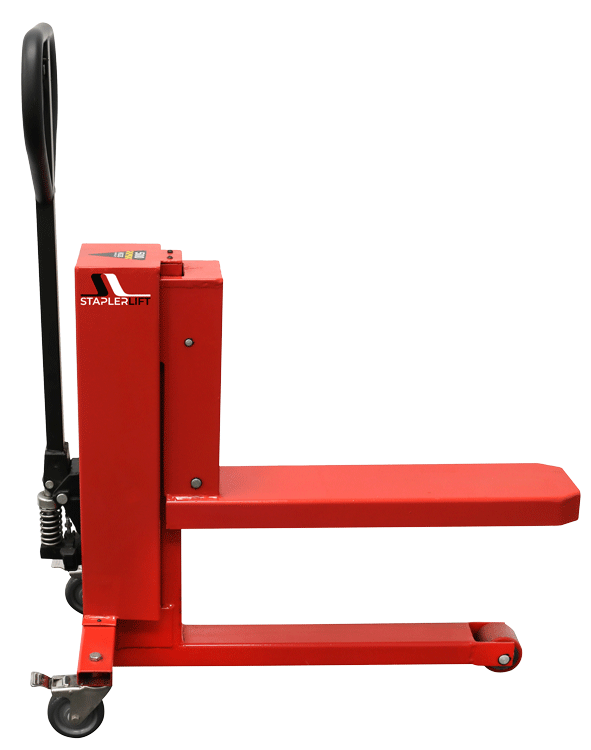

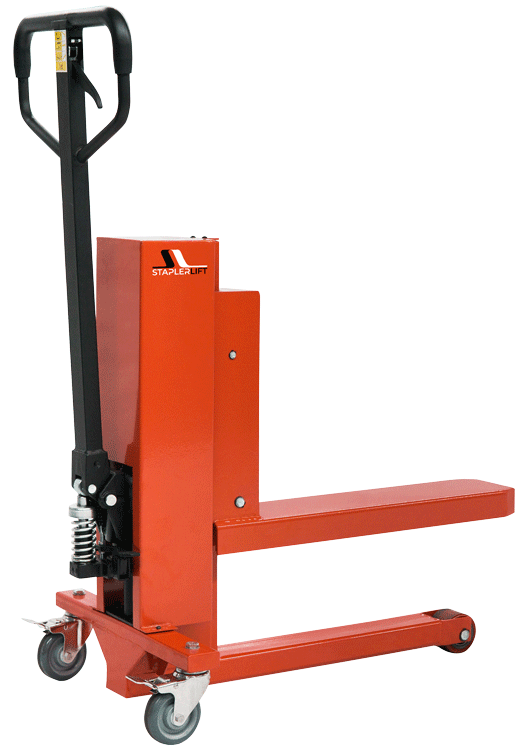

Display pallet lifter 500kg STANDARD
Product information "Display pallet lifter 500kg STANDARD"
Specifically designed for lifting, lowering, and moving low to medium-height display pallets, the Staplerlift 500kg STANDARD display pallet lifter is the ideal companion for merchandise handling at stationary points of sale. This practical device allows for the ergonomic and effortless movement of CHEP pallets, display pallets, and quarter pallets in narrow aisles and racking areas of retail spaces.
Product highlights:
- Designed for lifting, lowering, and transporting CHEP, display, and quarter pallets
- Maximum load capacity of 500 kg
- Convenient and effortless maneuvering thanks to its compact desidgn - ideal for retail spaces, supermarkets, discount stores, and more
- Safe handling and high maneuverability thanks to two lockable PU swivel casters and the PU fork wheel
- Easy operation of the lifting hydraulics via the ergonomically designed tiller - the same principle as a manual pallet truck
By pumping the tiller, the display pallet (up to 500 kg) can be hydraulically lifted to a maximum fork height of 395 mm - similar to a manual pallet truck. Lowering is achieved by simply pulling the release lever - the lowering can be controlled by the duration the lever is held. The compact design, combined with its high maneuverability, makes it very easy for the operator to use, thus making this display pallet lifter ideal for use at the point of sale (POS) in supermarkets, discount stores, and many other retail environments. When not in use, the pallet lifter can be secured against unwanted movement using the lockable casters.
The lowering lever can be lowered to prevent the pallet lifter from rolling away unintentionally. With the 500kg STANDARD display pallet lifter from Staplerlift, you get a powerful logistical transport device for stationary sales areas, which places display pallets at the point of sale in a way that is effortless and efficient, thus becoming an indispensable device.
| Drive: | manuell |
|---|---|
| Fork Height, min.: | 90 mm |
| Fork Length: | 650 mm |
| Fork Thickness: | 56 mm |
| Fork height max.: | 395 mm |
| Front Rollers: | 80mm x 60 mm PU einfach |
| Ground Clearance: | 35 mm |
| Handle Height max.: | 1200 mm |
| Load Capacity: | 500 kg |
| Overall Length: | 970 mm |
| Single Fork Width: | 165 mm |
| Steering Wheel: | 100 mm x 32 mm PU |
| Stroke: | 305 mm |
| Weight: | 57 kg |
| Width: | 510 mm |
