Electric Tugger 1000kg BASIC
Product information "Electric Tugger 1000kg BASIC"
Force-saving yet efficient process of heavy rollable loads such as Car trailers (not tandem/multi-axle trailers) turn out brilliantly with the 1000kg BASIC electric trugger from Staplerlift Single-axle trailers or trailers with two fixed wheels and two steering wheels are ideal for moving. Tight cornering with trailers that have two closely spaced axles is not recommended due to the increased ground friction values. Using the simple hook system, this electric trugger optimally absorbs the load to be pulled or pushed and makes it possible to transport it to its destination in your operation.
Product highlights:
- Easy pulling and pushing of rolling loads up to 1000 kg supported by electric drive motor with 24 V / 400 W

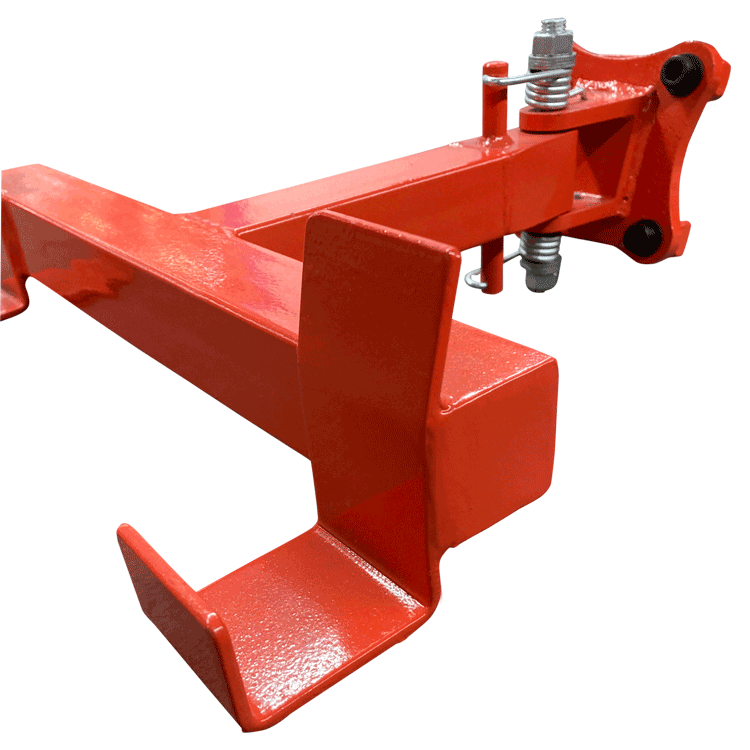

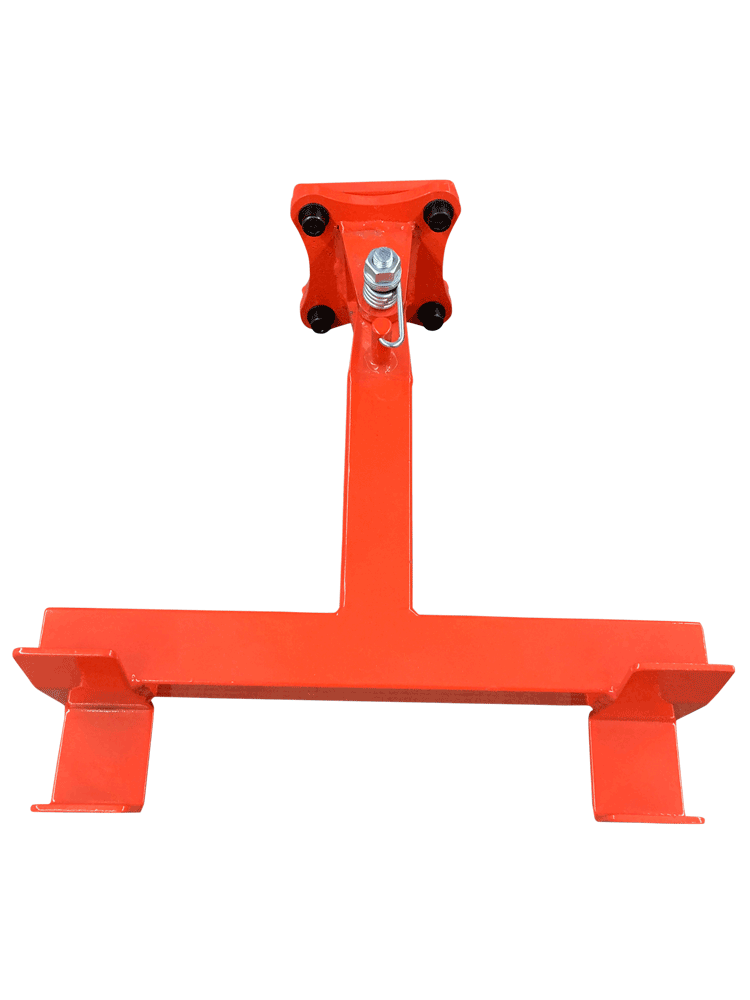

- Easy absorption of machines, equipment and other loads with the hook system
- Variable adjustment of the load-bearing point from 120 mm to 240 mm
- Change to optionally available ball head/bolt coupling possible (not suitable for tandem trailer variants)
- Intuitive handling and operation - all control switches and buttons logically arranged on the handle
- Suitable also for slightly uneven surfaces thanks to the air-filled drive wheels - driving speed of 3-6 km/h
- Continuous working time up to 5 hours through two integrated AGM batteries with 12 V / 22 Ah
- Easy-to-read battery and discharge indicator

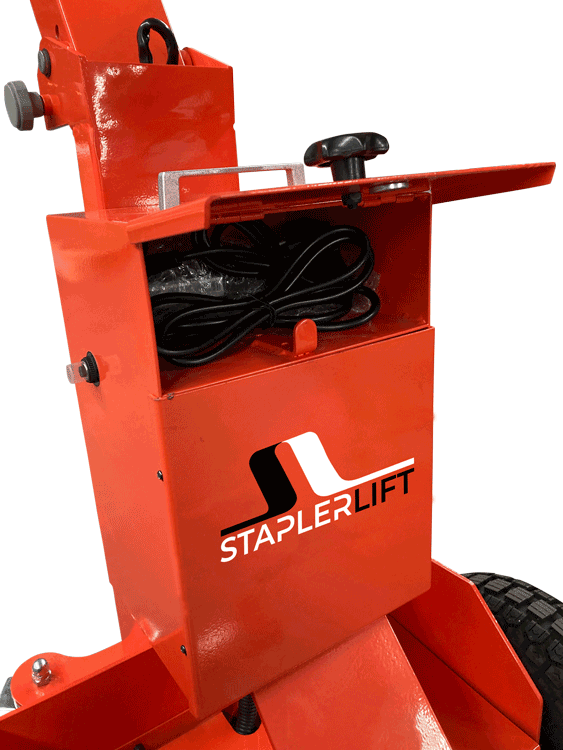

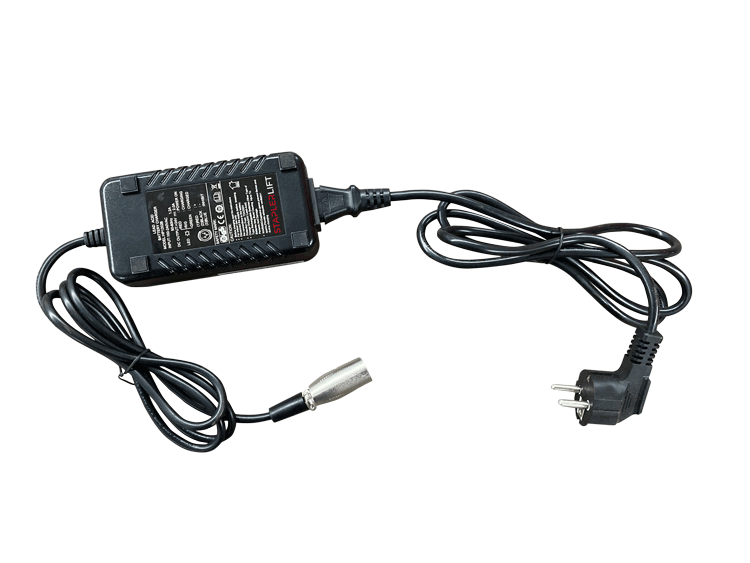

- Recharge time of 10-12 hours with the included external charger (24 V / 3 A, for conventional sockets)
- Conversion to manual operation trough integrated clutch
The load to be processed can be easily picked up using the hook system, in which the device is tilted forward in front of the load to be processed and then moved below the point where the load is picked up. Now the hook system can pick up the load directly by tilting the tug back again. At 3-6 km/h, the picked-up, rollable goods can be transported within the company in a power-saving manner; thankts to the pneumatic-tyred drive wheels, this can also be done on slightly uneven surfaces such as e.g. Asphalt or paved floor possible. In continuous operation, the 1000 kg BASIC electric trugger from Staplerlift can be used for up to 5 hours before it needs to be recharged for approximately 10-12 hours using the external charger.
In logistical use, this model also impresses with a high degree of flexibility. Thus, the loading-bearing point of 120 mm to 240 mm can be adjusted as required, and the hook system can be replaced by the optionally available bolt coupling. If the device fails during use due to a low battery level, the electric trugger can be used for manual operation by changing the clutch. This allows the device to be moved without problems even when not in use, when it needs to be moved away quickly due to space constraints.
Whether in industry, crafts or other sectors - with the 1000 kg BASIC electric trugger from Staplerlift you get a flexible device for moving large mobile loads.
Please note that this electric trugger model is generally only suitable for use on flat surfaces or routes and can not be used in areas with inclines. Use with tandem trailers is also not possible.

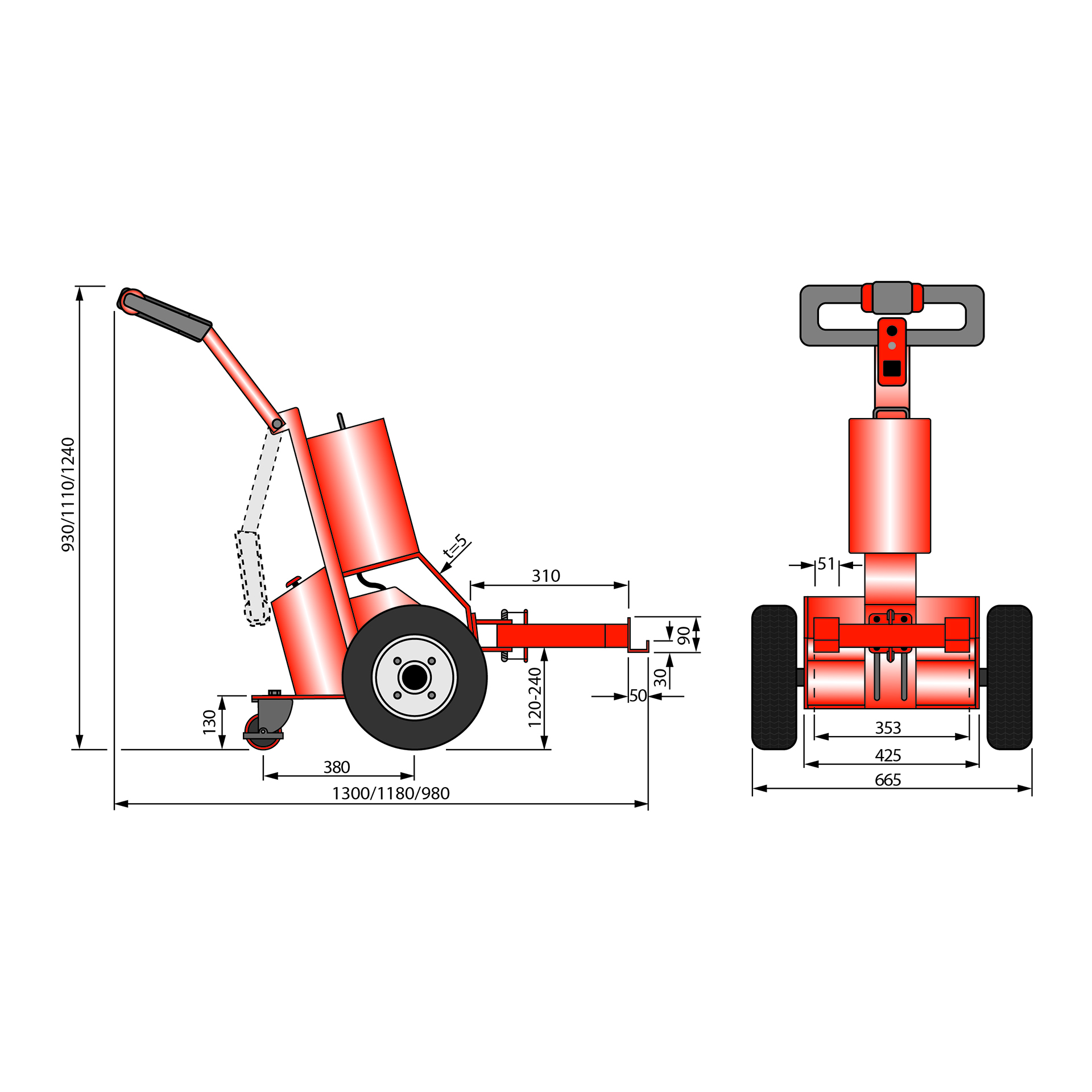

| Abmessungen Hakensystem: | Abstand Haken: 250 mm, Gesamtbreite Hakenaufnahme: 350 mm, Hakenbreite: 50 mm, Hakentiefe: 50 mm |
|---|---|
| Battery: | 4 x 12 V / 12 Ah |
| Driving Wheel: | 2 x 320 mm x 100 mm Gummi |
| Handle Height max.: | 1240 mm |
| Höhe Lastaufnahmepunkt max. : | 240 mm |
| Höhe Lastaufnahmepunkt min.: | 120 mm |
| Overall Length: | 1300 mm |
| Pull/Push: | 1000 kg |
| Speed, with full load: | 3 - 6 km/h |
| Steering Wheel: | 2 x 100 mm x 31 mm Gummi |
| Support load: | 30 kg (min.) / 75 kg (max.) |
| Weight: | 69 kg |
| Width: | 665 mm |
