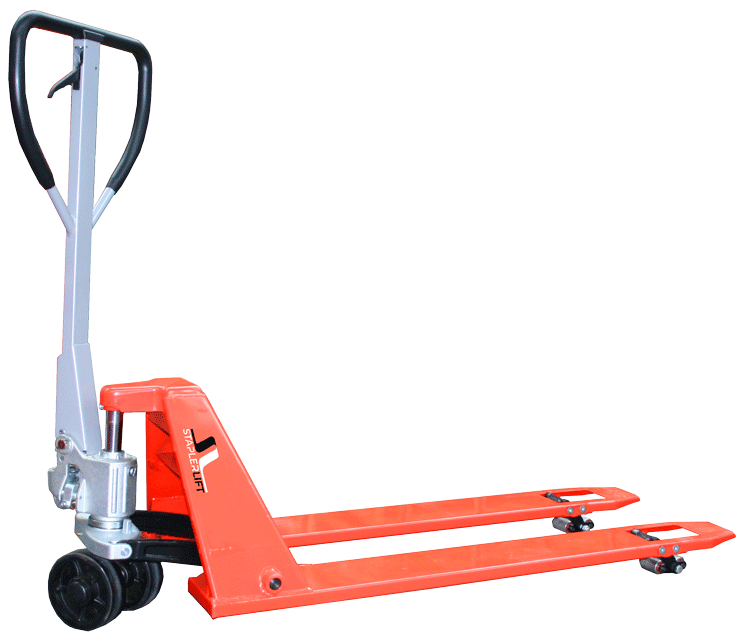

Low Entry Height Pallet Truck PLUS+
Product information "Low Entry Height Pallet Truck PLUS+"
The Low Entry Height Pallet Truck PLUS+ from Staplerlift was developed for lifting and transporting flat pallets. Thanks to its minimal fork height of 35 mm, this low lift pallet truck can be used to lift pallets with a low entry height, where a conventional pallet truck can no longer be used. This manual pallet truck is ideal for use in freight forwarding or warehouse logistics, as its fork length of 1120 mm and maximum load capacity of 1000 kg allow it to handle almost any transport task.
Product highlights:
- Minimum fork height of 35 mm allows the truck to be driven under low special pallets
- Load capacity up to max. 1000 kg
- Robust, powder-coated frame and powder-coated drawbar
- Easy-to-use, reinforced steering and pump drawbar with integrated lever for pump position, drive position, and release function
- High-performance hydraulic unit with integrated foot release lever
- Compact design for easy maneuvering and maneuvering
- PU steering wheels and steel tandem rollers facilitate the transverse pick-up of pallets by easily overcoming uneven surfaces such as pallets boards
This version of the low-entry pallet truck PLUS+ can be used to transport special pallets with a minimum entry height of 35 mm in everyday logistics operations without any problems. As with standard pallet truck models, pallet can be picked up by simply pumping the tiller, with the maintenance-free, high performance hydraulic pump controlling and quickly lifting the flat fork. The fork and load can be lowered easily and precisely by operating the foot release lever or the control lever on the tiller. The robust nylon tandem tires make it particularly easy to drive over pallet boards for cross-loading and contribute to the high durability of this pallet truck model. In addition, this pallet truck for low special pallets is particularly corrosion-resistant thanks to its powder-coated drawbar and fork.
The Low Entry Height Pallet Truck PLUS+ from Staplerlift is therefore ideal as a pallet truck with a flat fork for all kinds of logistics tasks involving pallets with a low entry height.
| Distance Between Forks: | 210 mm |
|---|---|
| Drive: | manuell |
| Fork Height, min.: | 35 mm |
| Fork Length: | 1120 mm |
| Fork Thickness: | 30 mm |
| Fork height max.: | 90 mm |
| Front Rollers: | 34mm x 58mm Steel Double |
| Handle Height max.: | 1150 mm |
| Load Capacity: | 1000 kg |
| Overall Fork Width: | 530 mm |
| Single Fork Width: | 160 mm |
| Steering Wheel: | 160mm x 50mm PU |
| Stroke: | 55 mm |
| Weight: | 105 kg |
