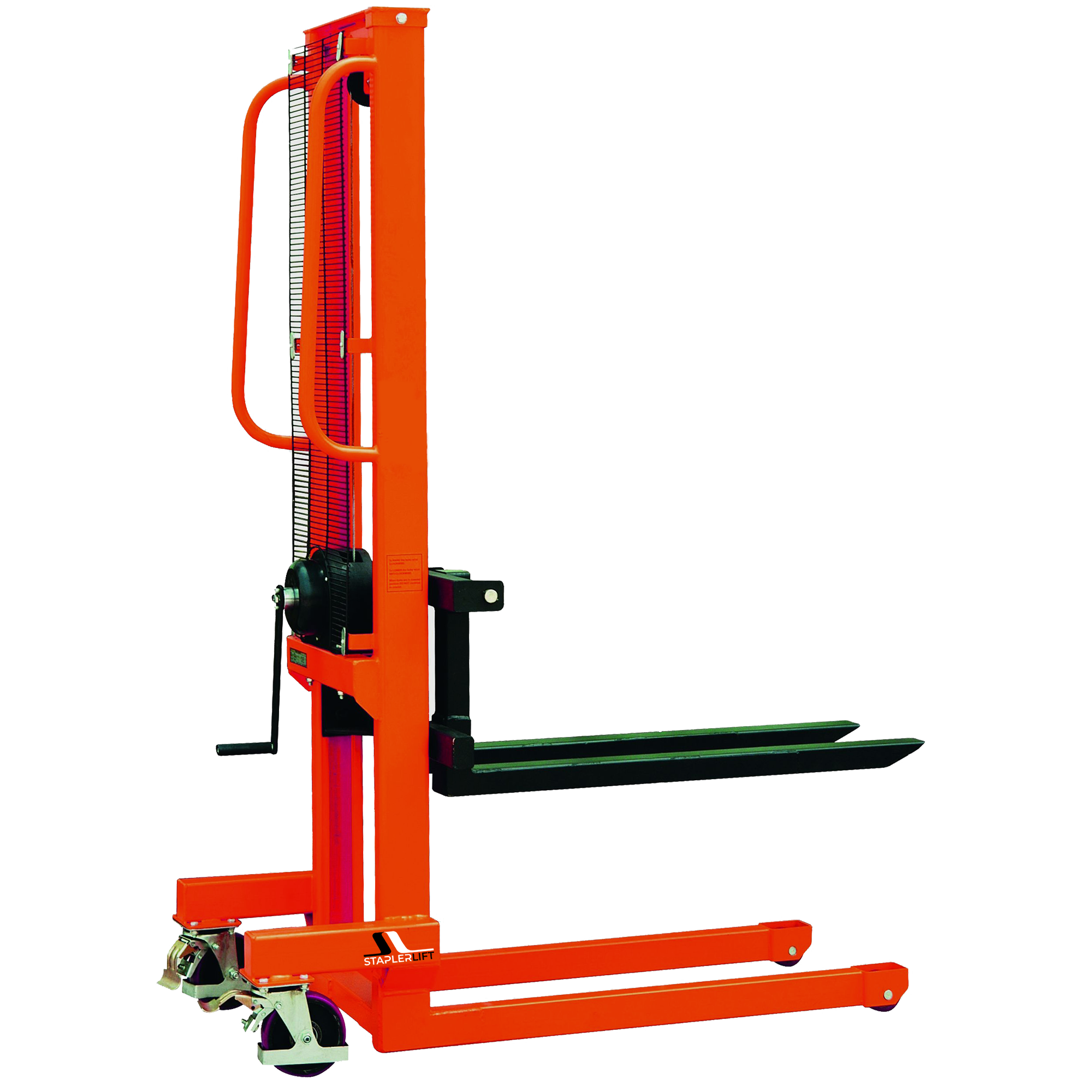

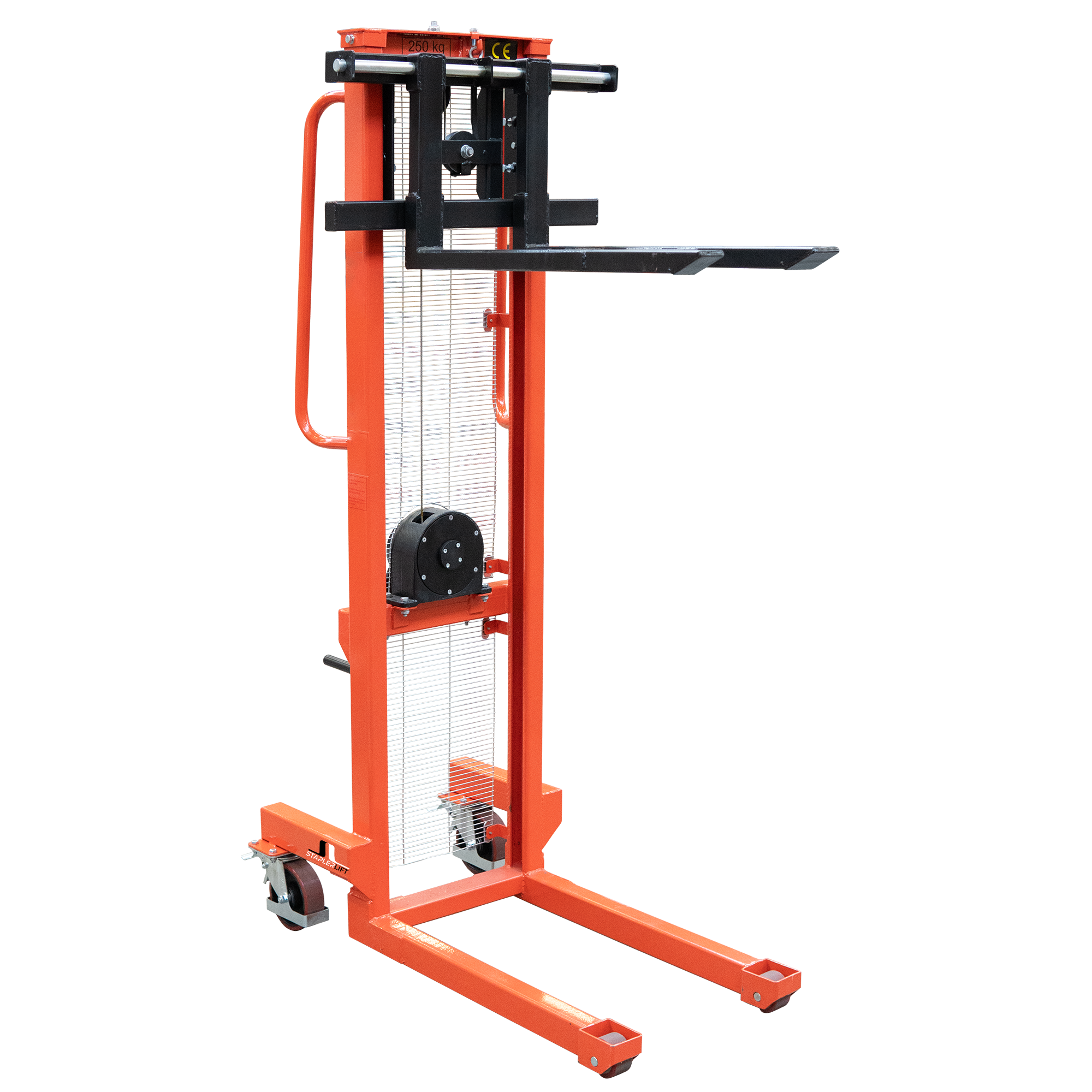

Manual winch stacker PLUS+
Product information "Manual winch stacker PLUS+"
The PLUS+ manual winch stacker is an environmentally friendly alternative for moving loads and loading machines in production, trage, and warehousing. It can even be used as an assembly aid. The manual winch stacker really comes into its own in confined spaces. Despite its strudy, powder-coated steel profile construction, the hand-operated windlass stacker is easy to maneuver due to its low weight.
Product highlights:
- High load capacity of up to 250 kg
- Environmentally friendly and low-maintenance design as no hydraulics, seals, or batteries are installed
- Thanks to its compact design, the stacker excels in confined spaces and is easy to maneuver
- Adjustable forks enable the lifting and transport of half pallets or special pallets
- Smooth movement thanks to polyurethane tires and low weight
- Caster wheels are equipped with safety locks
- Self-locking safety winch enables millimeter-precise lifting and lowering by simply turning the crank, with a stroke of 35 mm per crank rotation
- Robust, powder-coated construction ensures a long service life and high stability, even under demanding conditions
The polyurethane tires also contribute to easy handling. The two swivel casters are equipped with safety brakes. The stacker can lift loads of up to 250 kg, and the forks are adjustable in width. This is particularly practical for picking up and transporting half or special pallets, which creates a wide range of possible applications. A self-locking safety winch allows the load to be lifted and lowered with milllimeter precision by simply turning the crank. Power ist trasmitted via a steel cable, with a stroke of 35 mm per crank rotation.
As there are no seals, hydraulics, or batteries, no oil changes are required, making the stacker low-maintenance, wear-free, and environmentally friendly.
The PLUS+ manual winch stacker is characterized by its user-friendly and compact design as well as its excellent price-performance ratio.
| Drive: | manuell |
|---|---|
| Fork Height, min.: | 50 mm |
| Fork Length: | 800 mm |
| Fork Thickness: | 40 mm |
| Fork height max.: | 1550 mm |
| Gesamthub: | 1500 mm |
| Hub je Kurbelumdrehung: | 35 mm |
| Lastrollen: | 80 mm x 47 mm PU |
| Load Capacity: | 250 kg |
| Net Weight, kg: | 130 kg |
| Overall Fork Width: | 150 mm - 690 mm |
| Overall Length: | 1390 mm |
| Single Fork Width: | 70 mm |
| Steering Wheel: | 160mm x 50mm PU |
| Turning Radius: | 1075 mm |
| Width: | 725 mm |
| max. Gesamthöhe : | 2030 mm |
