Pallet truck with hand brake PLUS+
Product information "Pallet truck with hand brake PLUS+"
The Pallet truck with hand brake PLUS+ from Staplerlift is the ideal solution for the safe transport of goods on inclines or ramps. Thanks to the permanently installed high-performance drum brake, this pallet truck model allows you to control your speed on inclines or sloping roads at all times. The parking brake function also allows you to park the pallet truck safely and without any problems. In terms of driving comfort, this model features equipment that guarantees convenient and easy maneuverability in everyday logistics.
Product highlights:
- Load capacity up to max. 2500 kg
- Integrated high-performance drum brake with progressive effect
- Progressive braking by actuating the brake lever
- Locking of the brake lever for the parking brake function

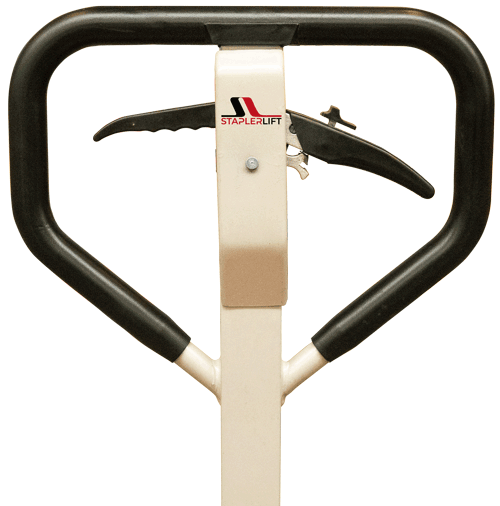

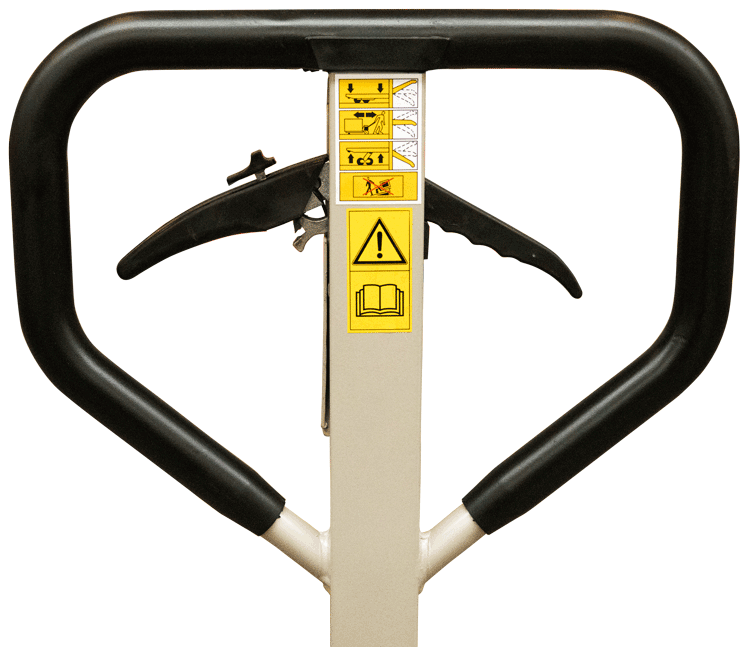

- Reinforced steering and pump drawbar with full rubber coating, with integrated control lever for the lifting and lowering function and the brake lever with lock
- Generous steering angle of 2 x 105°
- Robust, powder-coated steel frame
- Powerful hydraulic unit with integrated foot release lever, pressure relief valve, and central lock for quick seal replacement
- Low-noise tires made of PU tandem fork rollers and rubber swivel casters for safe driving stability and smooth running
When using the pallet truck to transport palletized goods, the drum brake can be used as a speed brake on inclines and ramps during travel to prevent umwanted and dangerous rolling away under load. To do this, simply pull the brake lever attached to the tiller handle by hand - the braking power increases progressively as the pulling force increases. If it is necessary to park the pallet truck on a slope, the parking brake function is activated by locking the pulled brake lever. This prevents unwanted, creeping rolling away from a standstill and keeps the truck safely in place.
When moving pallets and mesh boxes weighing up to 2500 kg, this hand pallet truck benefits from the 105° steerable drawbar on both sides, which is reinforced and ensures comfortable maneuverability with its solid rubber coating. All transport tasks are carried out with this model with a high degree of smoothness - the built in PU tandem fork rollers and rubber swivel castors allow for very stable and quiet operation.
With the Pallet truck with hand brake PLUS+ from Staplerlift, you get a safe device for transporting loads over inclines and on sloping paths, which efficiently fulfills logistical tasks.
| Distance Between Forks: | 220 mm |
|---|---|
| Drive: | manuell |
| Fork Height, min.: | 85 mm |
| Fork Length: | 1150 mm |
| Front Rollers: | 80mm x 70mm PU Double |
| Handle Height max.: | 1200 mm |
| Load Capacity: | 2500 kg |
| Overall Fork Width: | 540 mm |
| Single Fork Width: | 160 mm |
| Steering Wheel: | 200mm x 50mm Rubber |
| Stroke: | 115 mm |
| Weight: | 75 kg |
| mit Fahr und Feststellbremse: | ja |
