Pallet truck with quick lift PLUS+
Product information "Pallet truck with quick lift PLUS+"
When high logistics volumes mean that pallets need to be lifted quickly, the pallet truck with quick lift PLUS+ from Staplerlift is the right choice. Thanks to the quick lift function, loads up to 200 kg can be lifted to a fork height of 200 mm with just 6 tiiller movements. Shipping companies and warehouse with high goods turnover frequencies benefit particularly from this function, which supports efficient processes in areas such as goods issue and shipping logistics.
Product highlights:
- Load capacity up to a maximum of 2000 kg
- Practical quick lift function up to a maximum weight of 200 kg
- Lifting loads to a fork height of 200 mm with just 6 tiller movements
- Automatic switching of the hydraulics to normal lift for loads over 200 kg
- Robust, powder-coated steel frame
- Easy-to-use drawbar for moving and lifiting pallets with integrated control lever for the lifting and lowering function
- Robust hydraulic unit with integrated foot release lever

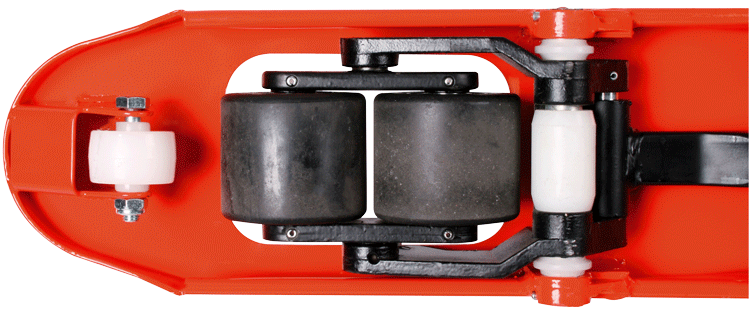

- Tires made of durable PU single fork rollers and PU steering wheels
The quick lift function significantly reduces physical strain on the operator and the time required to pick up pallets. For loads up to a maximum of 200 kg, lifting is performed in quick lift mode - only 6 tiller movements are then required to reach the maximum fork height of 200 mm. If the load exceeds the maximum possible weight for the quick lift function of 200 kg, the hydraulics automatically switch to the normal lift function - without any additional effort on the part of the operator. This special pallet truck is therefore particularly suitable for companies with increased logistics volumes, where palletized goods need to be transported quickly and efficiently. However, the pallet truck with quick lift PLUS+ is also suitable for conventional logistics applications. The solid frame construction, in conjunction with the powerful hydraulic unit, enables the transport of Euro pallets and mesh boxes up to a maximum of 2000 kg.
Loads can be lowered again with particular sensitivity using the control lever on the drawbar or the foot release lever. The protected drawbar spring and the powder-coated steel base frame make this pallet truck particularly corrosion-resistant, making it a durable and reliable solution for your business.
With the pallet truck with quick lift PLUS+ from Staplerlift, you get a logistics transport device optimized for use with higher working frequencies that leaves nothing to be desired.
| Distance Between Forks: | 220 mm |
|---|---|
| Drive: | manuell |
| Fork Height, min.: | 85 mm |
| Fork Length: | 1150 mm |
| Fork Thickness: | 50 mm |
| Fork height max.: | 200 mm |
| Front Rollers: | 80mm x 93mm PU Single |
| Ground Clearance: | 35 mm |
| Handle Height max.: | 1200 mm |
| Load Capacity: | 2500 kg |
| Load Center: | 600 mm |
| Overall Fork Width: | 540 mm |
| Overall Length: | 1555 mm |
| Schnellhub: | ja |
| Single Fork Width: | 160 mm |
| Steering Wheel: | 200mm x 50mm PU |
| Stroke: | 115 mm |
| Weight: | 69 kg |
