Platform Lift STANDARD
Product information "Platform Lift STANDARD"

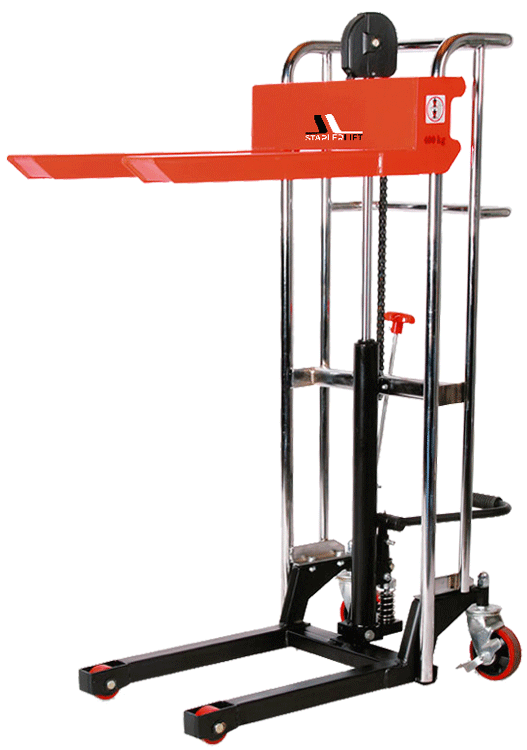

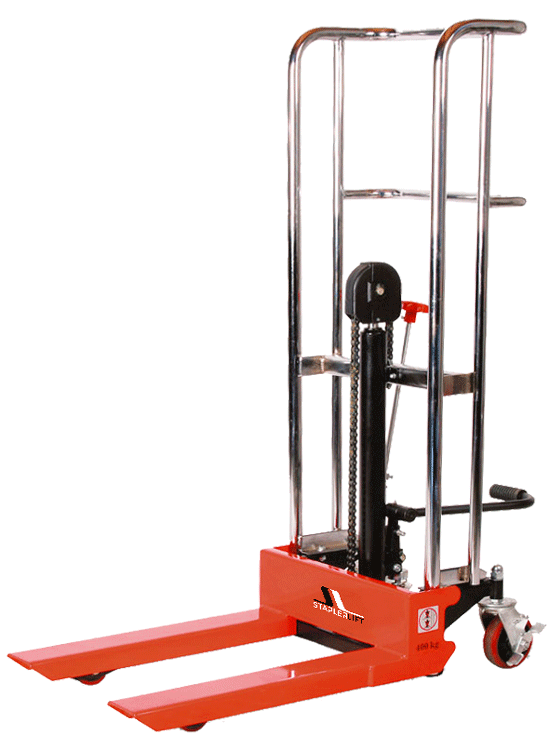

As a versatile aid in logistics and material handling, the STANDARD Platform Lift from Staplerlift offers practical features that greatly simplify daily work. Whether used as a workbench or work surface, as a loading device, or as a lifting mechanism for filling equipment with materials - the applications for this manual platform lift are virtually limitless. Thanks to the robust hydraulic lfiting mechanism, loads up to a maximum weight of 400 kg can be lifted.
Product highlights:
- Maximum load capacity of 400 kg
- Maximum lifting height of 1210 mm
- Ideal for flexible use in logistics and material handling
- Can be used as a lift with forks; the platform can be mounted on the forks if needed
- Lifting of the forks or platform via the hydraulic foot pump
- Flexible control of the lowering speed via a release valve
- Stable and robust frame construction for high stability
- Wheels consisting of two fork casters and two swivel casters (lockable)
Operating the STANDARD platform lift is virtually self-explanatory and essentially involves just two steps: Pressing the foot lever activates the hydraulic pump, raising the fork or lifting platform to a maximum height of 1210 mm. Turning the release valve clockwise lowers the fork or platform - the more you turn it, the faster it descends. This simple and hassle-free operation extends to maneuvering - the platform lift can be moved safely on its sturdy frame and is particularly stable thanks to its wheels, which consist of two swivel casters and two fixed casters. This makes the platform lift equally suitable for simple local transport tasks. When not in use, both swivel casters can be locked with the locking mechanism, preventing the platform lift from rolling away unintentionally.
Purchasing the STANDARD platform lift from Staplerlift is definitely a worthwhile investment if you need a practical and versatile lifting device.
If you have any further technical questions about the product or require additional product specifications, please feel free to contact us via email at [email protected]. Our team is always happt to assist you.
| Drive: | manuell |
|---|---|
| Fork Length: | 650 mm |
| Hub je Pumpbewegung: | 23 mm |
| Hublast: | 400 kg |
| Höhe Schiebegriff: | 1070 mm |
| Length: | 1037 mm |
| Radstand: | 785 mm |
| Single Fork Width: | 120 mm |
| Stroke: | 1120 mm |
| Tischbreite: | 576 mm |
| Tischlänge: | 650 mm |
| Weight: | 83 kg |
| Width: | 590 mm |
| max. Tischhöhe: | 1210 mm |
| min. Tischhöhe : | 90 mm |
