Ramp Container 181.5 x 200 x 20 cm STANDARD
Product information "Ramp Container 181.5 x 200 x 20 cm STANDARD"
Safe loading and unloading of containers becomes an easy task in everyday operations with the access ramp Container 181.5 x 200 x 20 cm STANDARD from Staplerlift. The high load capacity of 7500 kg allows it to be driven by a forklift truck by being able to overcome heels up to 200 mm high. An integrated moveable lip ensures adjustment of the ramp height in the range of 190 mm to 200 mm. Whether for ISO containers or roll-off containers - the use of this container ramp is possible in almost all application areas.
Product highlights:
- Maximum load capacity of 7500 kg
- Suitable as a mobile loading ramp for the safe loading and unloading of ISO ans roll-off containers, e.g. in sea freight transport or waste disposal logistics
- Integrated movable lip to adjust the ramp height from 190 mm to 200 mm
- Generous drive-up area of 1815 mm x 2000 mm - of which 2000 mm x 300 mm as lip measure

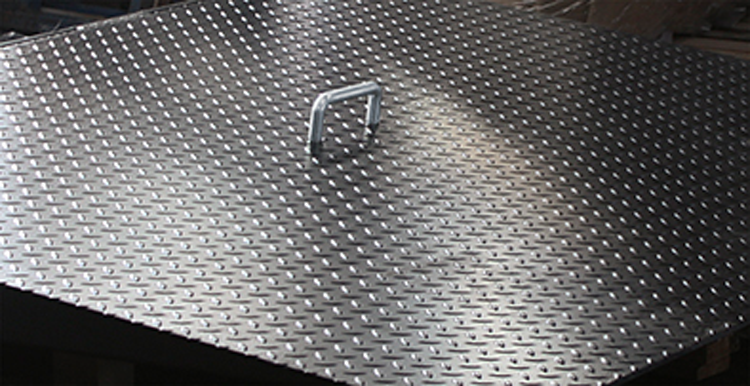

- Made of high-quality, tightly welded steel - grooved, anti-slip surface
- Chains attached on both sides with hooks for anti-slip or anti-slip protection
- Centrally mounted lifting bracket - extendable for receiving by a fork tine
The generously sized container loading ramp can be easily transported to the place of using the forklift's forklift tine thanks to the centrally mounted lifting bracket. The loading ramp is secured against slipping or shifting by means of the chains with hooks attached to both sides. The ramp can be used on ISO and roll-off containers with a heel height of 190 - 200 mm - with the integrated movable lip the ramp height can be adjustable accordingly. Taking into account the maximum load capacity of 7500 kg, the container ramp is designed for use by a forklift truck due to the large access area of 1815 mm x 2000 mm. The fluted surface of the tightly welded steel structure minimizes the risk of slipping when driving on it and thus contributes to high safety during container loading und unloading operations.
As a practical loading solution, the access ramp Container 181.5 x 200 x 20 cm STANDARD facilitates loading and unloading operations with a forklift truck by easily overcoming ledges between the ground and the floor of sea freight or roll-off containers.
| Height: | 190 mm - 200 mm (Ausgleich durch bewegliche Lippe) |
|---|---|
| Length: | 1815 mm |
| Load Capacity: | 7500 kg |
| Material: | Stahl - geriffelte Oberfläche |
| Net Weight, kg: | 282,5 kg |
| Steigungswinkel: | 7 ° |
| Width: | 2000 mm |
