Height Adjustable Pallet Chassis STANDARD
Product information "Height Adjustable Pallet Chassis STANDARD"

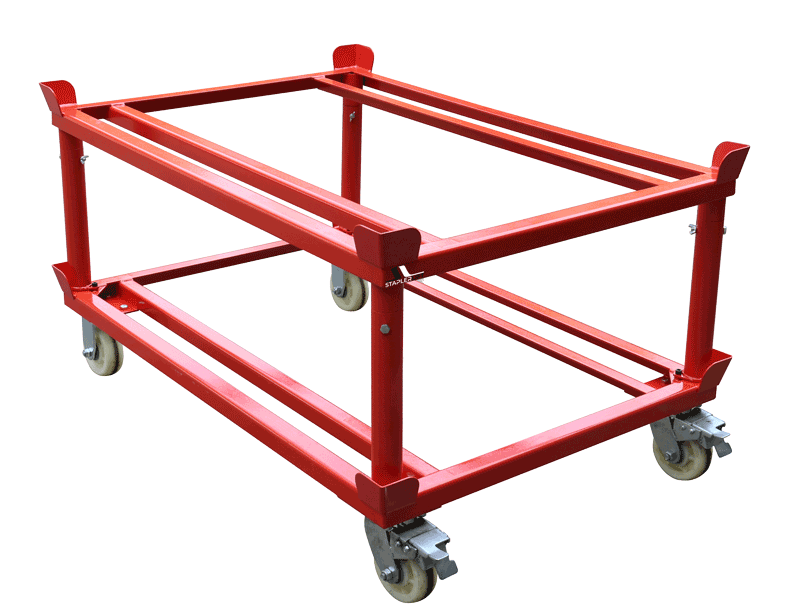

The STANDARD Height Adjustable Pallet Chassis from Staplerlift is an ergonomic transport device for pallets and mesh boxes that promotes good posture during logistics processes such as order picking. Six height settings allow the user to optimally adjust the working height to their physical needs, thereby actively preventing postural problems. Made of powder-coated structural steel, this pallet roller allwos palletized loads with a maximum weight of 1000 kg to be transported comfortably and with minimal strain on the back in warehouses, logistics facilities, or other operational areas.
Product highlights:
- Maximum load capacity of 1000 kg
- 6-step height adjustment for an optimal ergonomic working height between 670 and 910 mm

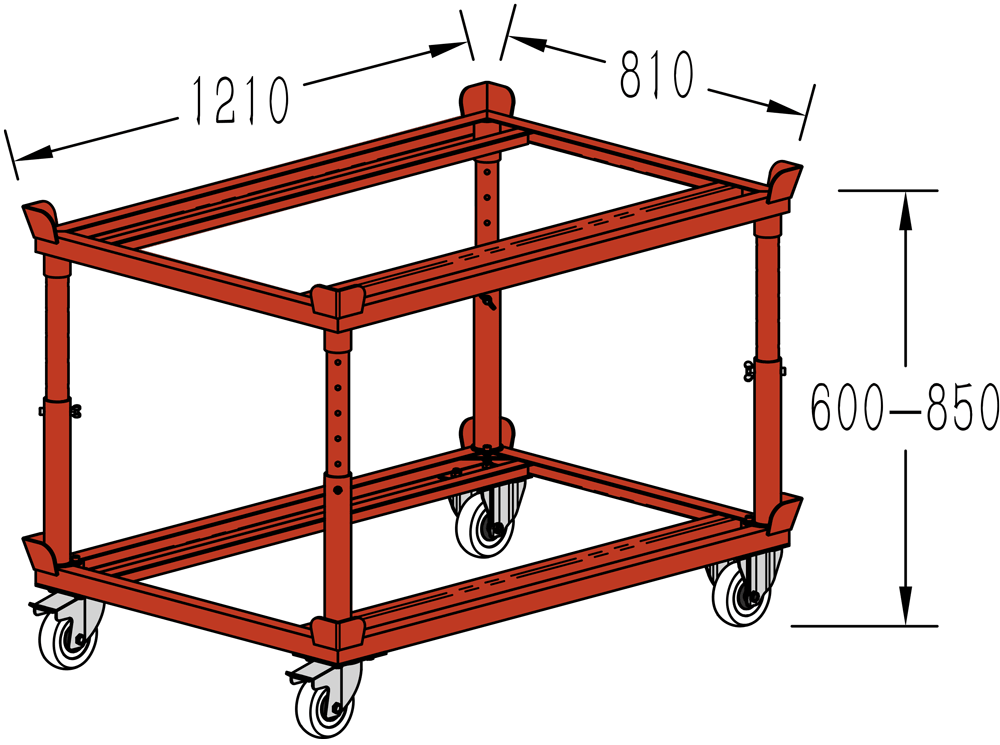

- Loading area of 1210 x 810 mm - ideal for transporting Euro pallets and Euro mesh boxes (1200 x 800 mm)
- Secure protection against potential slipping of the pallet/mesh box thanks to 4 welded retaining corners
- Compact dimensions and very easy manual maneuverability - an optimal alternative to conventional pallet jacks in confined spaces
- Wheels consisting of 4 high-quality nylon casters, 2 of which are swivel casters - good handling characteristics and high maneuverability
- Stable stance thanks to two parking brakes on the swivel casters
Depending on the required working height, the STANDRAD height adjustable pallet chassis allows for ideal adjustment to the user's height in 6 stepts between 670 and 910 mm, enabling the transport of palletized loads while maintaining a healthy posture. Typical logistics workflows, such as order picking of filling shelf compartments, are thus made easy and less physicaly taxing. Euro pallets and Euro mesh boxes can be easily placed on the sturdy steel frame, and the 4 welded corner brackets secure the pallet or mesh box against slipping during transport.
During stationary tasks or when not in use, the height-adjustable pallet chassis can be secured against unintentional rolling away using the two parking brakes on the nylon swivel casters. The pallet chassis moves very smoothly thanks to the high-quality nylon tires, which actively support the high maneuverability provided by the compact design, ensuring excellent maneuverability, especially in tight spaces.
With a maximum load capacity of 1000 kg, the STANDARD height ajdustable pallet chassis from Staplerlift proves to be a cost-effective solution for the ergonomic handling of Euro pallets and Euro mesh boxes when the purchase of pallet jackk or a mobile lift table seems too expensive.
| Gesamthöhe, min. - max., mm : | 670-910 |
|---|---|
| Ladebreite: | 810 mm |
| Ladelänge: | 1210 mm |
| Load Capacity: | kg, h: 700 - 750 mm, kg / h: 600 - 650 mm, kg / h: 800 - 850 mm |
| Overall Length: | 1290 mm |
| Rollen: | 120 x 45 Nylon |
| Weight: | 48 kg |
| Width: | 845 mm |
| obere Rahmenhöhe, mm: | 610-850 |
