Pallet frame with connection bar STANDARD
Product information "Pallet frame with connection bar STANDARD"
The STANDARD pallet chassis with connection bar from Staplerlift is designed for use with a tow tractor or as a train of multiple units, enabling the efficient transport of Euro pallets and mesh boxes within the facility. Made of powder-coated structural steel, the pallet roller is designed for a maximum load of 1000 kg and, thanks to the connecting rod, enables the transport of heavy palletized loads, e.g., with a ride-on electric tow tractor. Especially when using multiple interconnected pallet chassis, a wide range of logistical applications becomes possible.
Product highligths:
- Maximum load capacity of 1000 kg
- Coupling system for use with up to 5 pallet chassis in a tugger train (max. train speed 6 km/h, max. train weight 3000 kg)

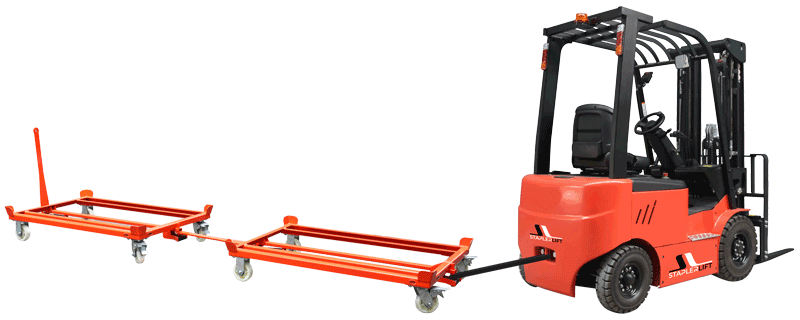

- Can be used in conjunction with an electric tow tractor with front-wheel steering and a tugger train coupling
- Loading area of 1210 x 810 mm - ideal for transporting Euro pallets and Euro mesh boxes (1200 x 800 mm)
- Secure protection against potential slippage of the pallet/mesh box thanks to 4 welded retaining corners
- Wheels consisting of 4 high-quality nylon casters, 2 of which are swivel casters - good handling characteristics and high maneuverability
- Stable positioning thanks to two parking brakes on the swivel casters
- Optimal directional stability thanks to the coupling system and swivel casters

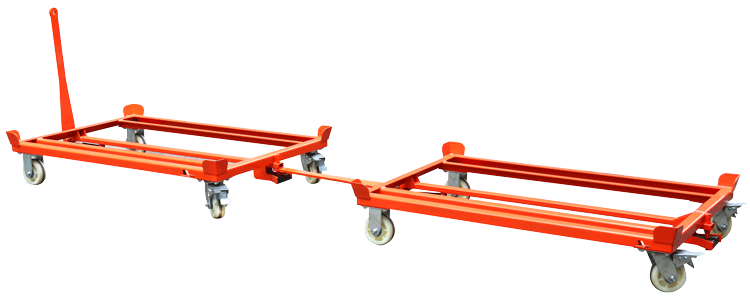

Up to 5 pallet trolleys can be connected into a tugger train using the connection rod; an electric tugger with front-wheel steering can be used as the tractor unit. In this configuration, the trolleys enable the time-saving and efficient transport of Euro pallets and Euro mesh boxes, even over longer distances within the facility. Thanks to the coupling system and high-quality nylon tires, optimal directional stability is guaranteed at all times during operation.
As a practical transport solution, several interconnected pallet rollers in a tugger train are suitabe, for example, for supplying parts and components to assembly lines. However, even a single pallet chassis, for example when used with a manually operated electric tow tractor, allows for the convenient handling of heavy individual loads when longer distances need to be covered in warehouse, logistics, or production areas. When not in use, the pallet chassis can be secured against unintentional rolling away using parking brakes on both nylon swivel casters.
When used as a transport device in combination with an electronic tow tractor, the STANDARD pallet frame with connection bar from Staplerlift noticeably increases the convenience of transporting heavy pallets. In a tugger train consisting of multiple units, this practical transport solution effectively demonstrates its strengths in enhancing efficiency and productivity in logistics operations.
| Gewicht Verbindungsstange: | 2.8 kg |
|---|---|
| Ladebreite: | 810 mm |
| Ladelänge: | 1210 mm |
| Load Capacity: | 1000 kg |
| Länge Verbindungsstange: | 665 mm |
| Overall Height: | 260 mm |
| Overall Length: | 1242 mm |
| Rollen: | 125 mm x 45 mm Nylon |
| Weight: | 30 kg |
| Width: | 842 mm |
